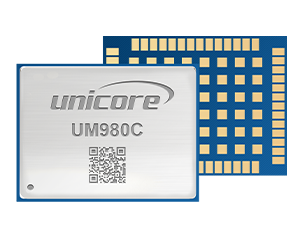

Unicores proprietäres hochpräzises RTK-Position ierungs modul der neuen Generation. Das Modul unterstützt alle derzeit verfügbaren Konstellationen und Frequenzen. Es verfügt über eine 50-Hz-RTK-Datenaktualisierungsrate und unterstützt PPP, einschl ießlich E6 HAS und BDS B2b. Mit seiner hervorragenden Leistung eignet sich UM980 gut für hochpräzise Vermessungs anwendungen, einschl ießlich Vermessung und Kartierung, Präzisions landwirtschaft und Verformung überwachung.
Based on Unicore's proprietary GNSS SoC NebulasIV that integrates RF, baseband and high-precision algorithm
All-constellation multi-frequency RTK engine and advanced RTK technology
Instant RTK initialization technology
Excellent anti-jamming and anti-spoofing capabilities, supporting jamming detection and spoofing detection
STANDALONE single-station high-precision positioning technology
Supports B2b-PPP, E6-HAS and QZSS L6E (MADOCA) PPP
Supports QZSS L6D (CLAS) PPP-RTK solution
Supports TruePoint|REACH Sat L-band-based PPP-AR service1
| Kanal | 1408 Kanäle, basierend auf NebulasIV | |||
| Frequenz | GPS L1C/A, L1C, L2C, L2P(Y), L5 | |||
| BDS B1I, B3I, B1C, B2a, B2b | ||||
| GLONASS G1, G2, G3 | ||||
| Galileo E1, E5a, E5b, E6 | ||||
| QZSS L1C/A, L1C/B, L1C, L2C, L5, L6 | ||||
| Navic L5 | ||||
| SBAS L1C/A | ||||
| Einzel punkt position ierung (RMS) | Horizontal: 1,5 m | |||
| Vertikal: 2,5 m | ||||
| DGPS (RMS) | Horizontal: 0,4 m | |||
| Vertikal: 0,8 m | ||||
| RTK (RMS) | Horizontal: 0,8 cm + 1ppm | |||
| Vertikal: 1,5 cm + 1ppm | ||||
| PPP(RMS) | Horizontal: 5 cm | |||
| Vertikal: 10 cm | ||||
| Beobachtungs genauigkeit (RMS) | BDS | GPS | GLONASS | Galileo |
| B1I/B1C/L1C/L1C/A/G1/E1 Code | 10cm | 10cm | 10cm | 10cm |
| B1I/B1C/L1C/L1C/A/G1/E1 Träger phase | 1mm | 1mm | 1mm | 1mm |
| B2I/B2a/B2b/L5/E5a/E5b Code | 10cm | 10cm | 10cm | 10cm |
| B2I/B2a/B2b/L5/E5a/E5b Träger phase | 1mm | 1mm | 1mm | 1mm |
| B3I/L2P(Y)/L2C/G2-Code | 10cm | 10cm | 10cm | 10cm |
| B3I/L2P(Y)/L2C/G2 Träger phase | 1mm | 1mm | 1mm | 1mm |
| Zeit genauigkeit (RMS) | 20 ns | |||
| Geschwindigkeit genauigkeit (RMS) | 0,03 m/s | |||
| Kaltstart | <12 s | |||
| Initial isierungszeit | <5 s (typisch) | |||
| Initial isierungs zuverlässigkeit | > 99,9% | |||
| Daten aktualisierungsrate | 50 Hz | |||
| Different ielle Daten | RTCM V3.X | |||
| Datenformat | NMEA 0183, Unicore | |||
Verpackung | 54 pin LGA |
Dimension | 17,0 × 22,0 × 2,6mm |
Gewicht | 1,88 ± 0,03g |
Arbeits temperatur | -40 °C ~ + 85 °C |
Lagerte mperatur | -55 °C ~ + 95 °C |
Luft feuchtigkeit | 95% keine Kondensation |
Vibration | GJB 150.16 A-2009, MIL-STD-810F |
Schock | GJB 150.18 A-2009, MIL-STD-810F |
| 3 × UART (LVTTL) |
| 1 × SPI * |
| 1 × I2C * |
| 1 × CAN * (geteilt mit UART3) |
Hinweis: Mit * gekennzeichnete Artikel werden nur von einer bestimmten Firmware unterstützt.
